Molecular dynamics simulation of the aggregation and diffusion of iron in liquid lead-bismuth

doi:10.7523/j.ucas.2025.028

Abstract

Abstract:

Liquid lead-bismuth is considered as the core coolant of the fourth-generation lead-cooled fast reactors， and its compatibility with structural steels is one of the focuses of current research. In this paper， the aggregation process of iron atoms in liquid lead-bismuth and the diffusion behavior of iron clusters were simulated by using the molecular dynamics method. The influence laws and microscopic mechanisms of the temperature of the system， the size and mass concentration of iron clusters on the coalescence process between iron clusters and the diffusion behavior of iron clusters were analyzed. The results show that iron atoms tend to form clusters in liquid lead-bismuth and that high temperatures can accelerate the aggregation process. In addition， it is found that the coalescence between iron clusters in liquid lead-bismuth needs to overcome energy barriers， the energy barrier to be overcome for the coalescence of two iron clusters of radii 10 Å at 473 K is about 2.14 eV， and the increase of system temperature and the increase of iron clusters size are favorable for the occurrence of coalescence between iron clusters. Furthermore， the diffusion coefficients of iron clusters were calculated， and found to increase with the decrease of their mass concentration， decrease with the increase of their size， and increase with the increase of the temperature of the system. The effect of iron clusters size on the diffusion activation energies was not significant， and the diffusion activation energies of iron clusters with radii of 10， 12.5， and 15 Å were 0.128， 0.140， and 0.134 eV， respectively.

Key words: molecular dynamics, iron clusters, liquid lead-bismuth, diffusion coefficient

CLC Number:

O551.3

Xuefeng HAN, Xingang YU. Molecular dynamics simulation of the aggregation and diffusion of iron in liquid lead-bismuth[J]. Journal of University of Chinese Academy of Sciences, 2026, 43(5): 614-622.

Figures/Tables 10

Fig.1 Dynamic evolution of Fe atoms in liquid Pb-Bi at 473 K

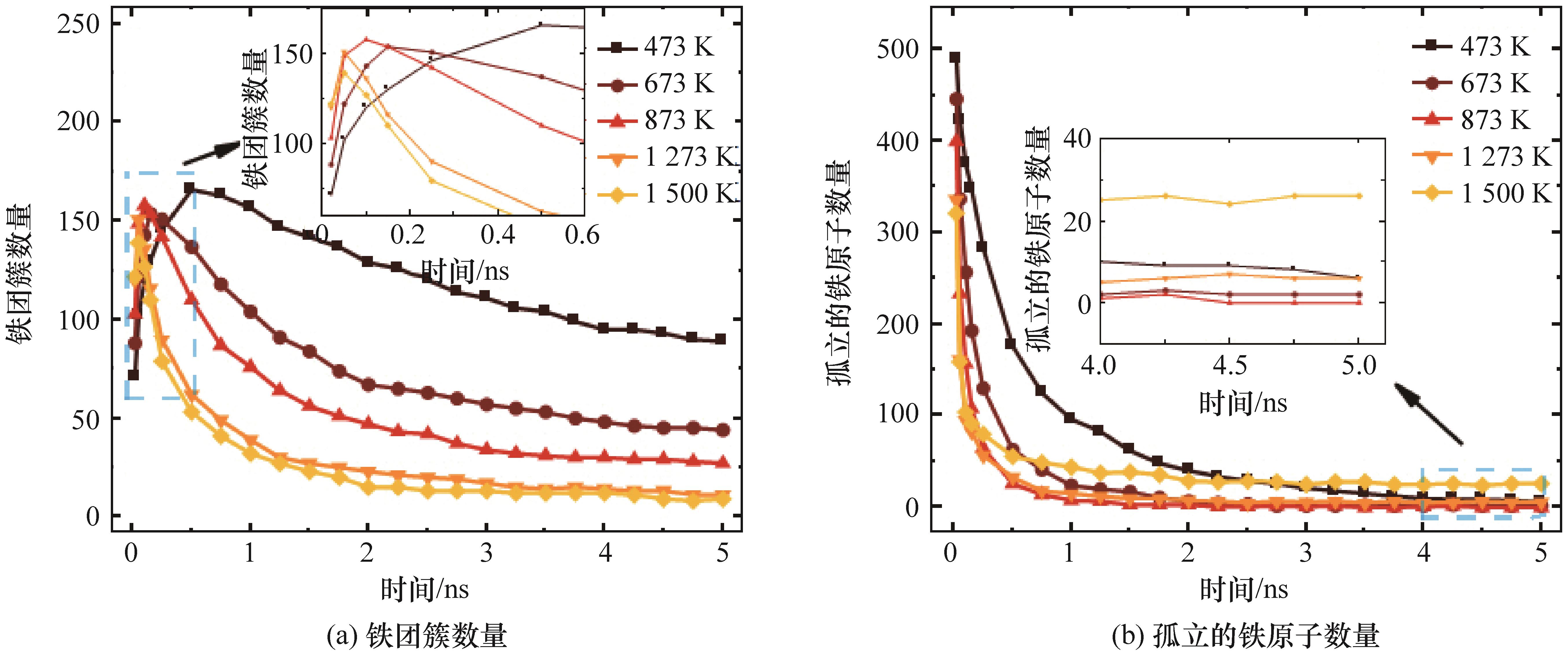

Fig.2 Time-dependent Fe cluster number and isolated Fe atom number at different temperatures

Fig.3 Dynamic evolution of Fe atoms in liquid Pb-Bi at 873 K

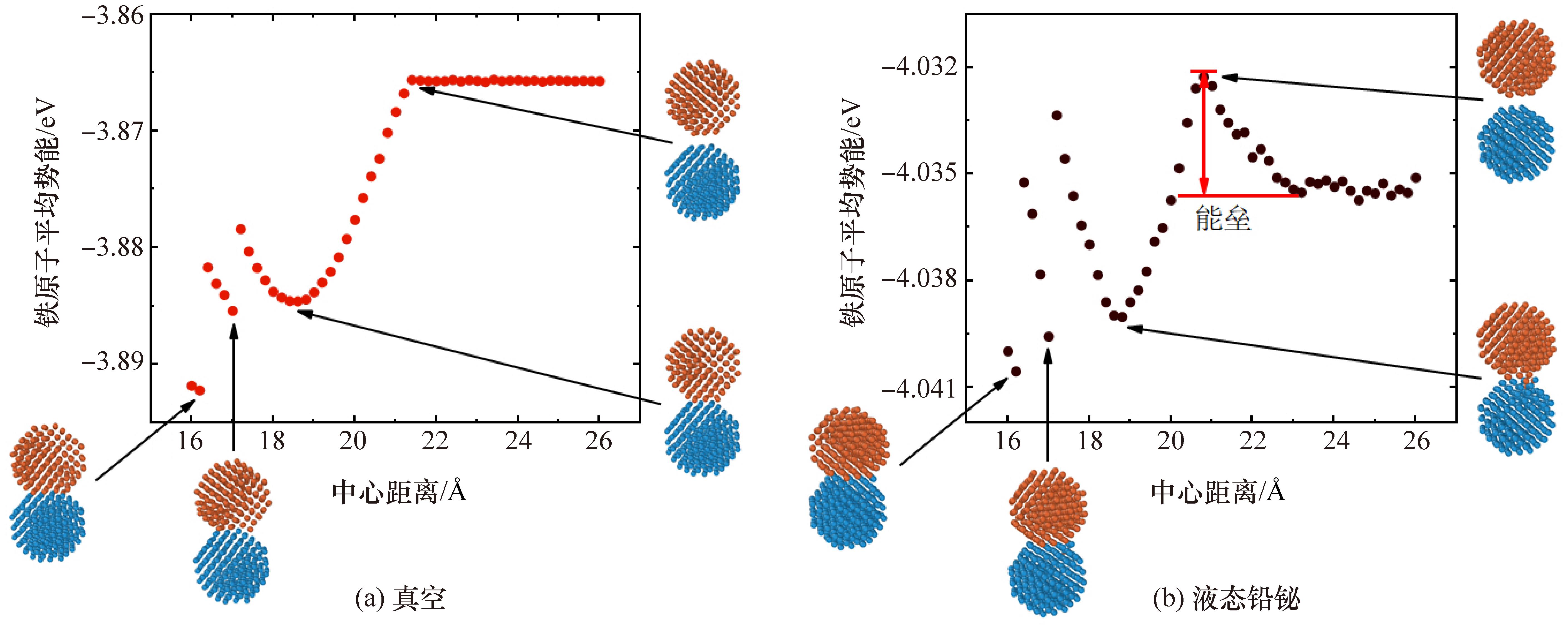

Fig.4 Central distance dependent average potential energy of Fe atoms in Fe clusters with radius of 10 Å at 473 K

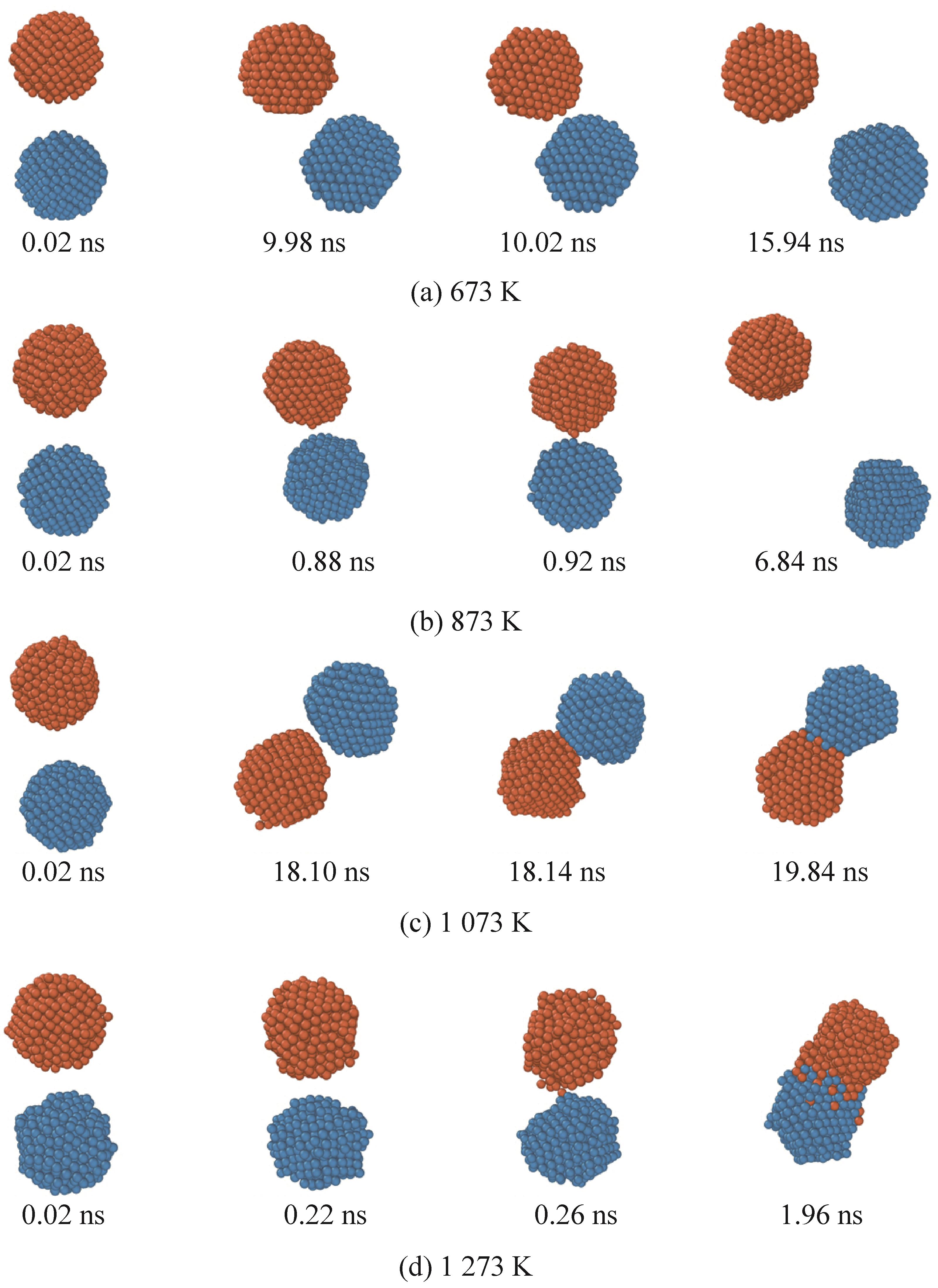

Fig.5 Dynamic evolution of Fe clusters with radius of 12 Å in liquid Pb-Bi at different temperatures

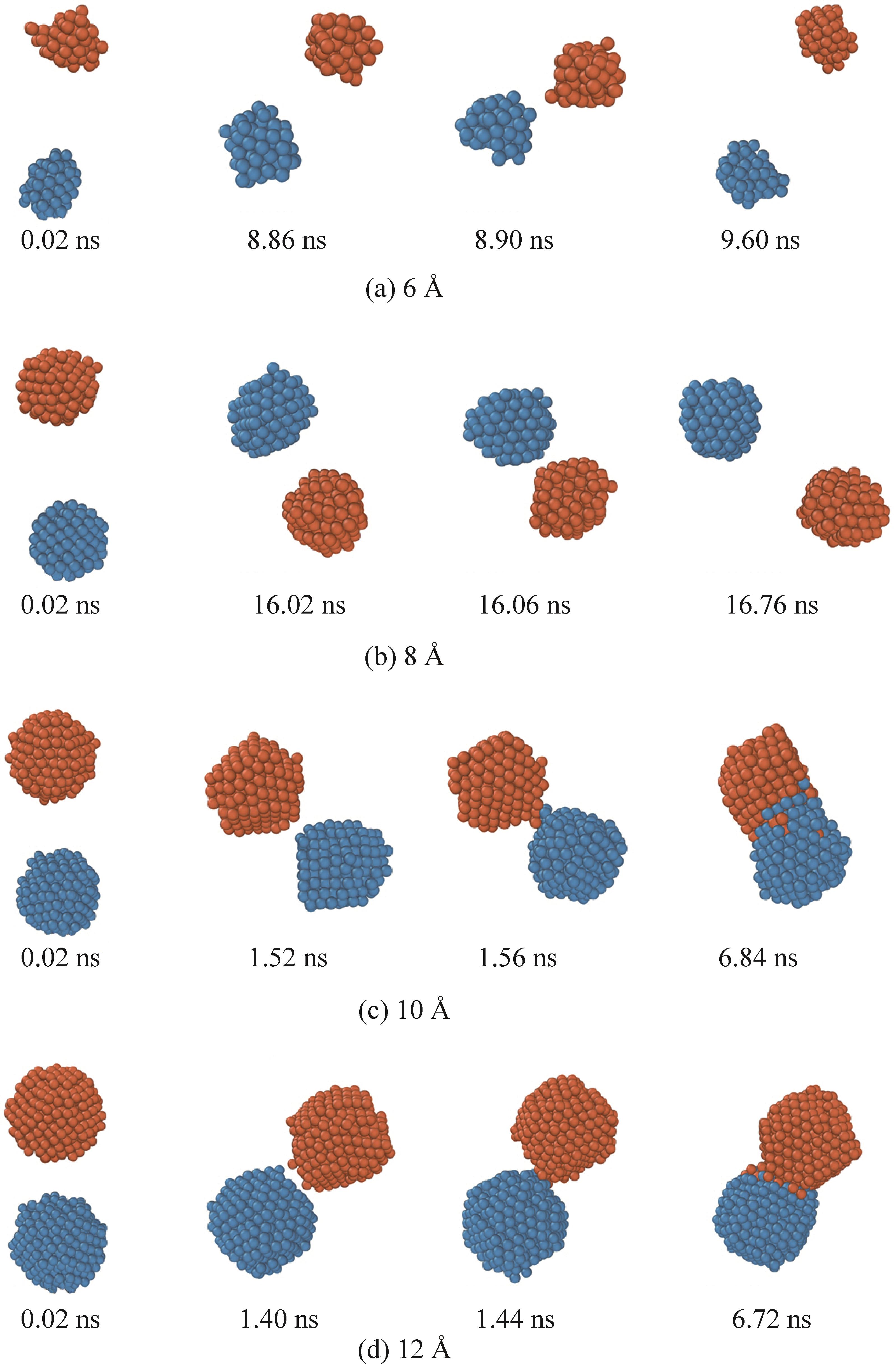

Fig.6 Dynamic evolution of Fe clusters with different radii in liquid Pb-Bi at 973 K

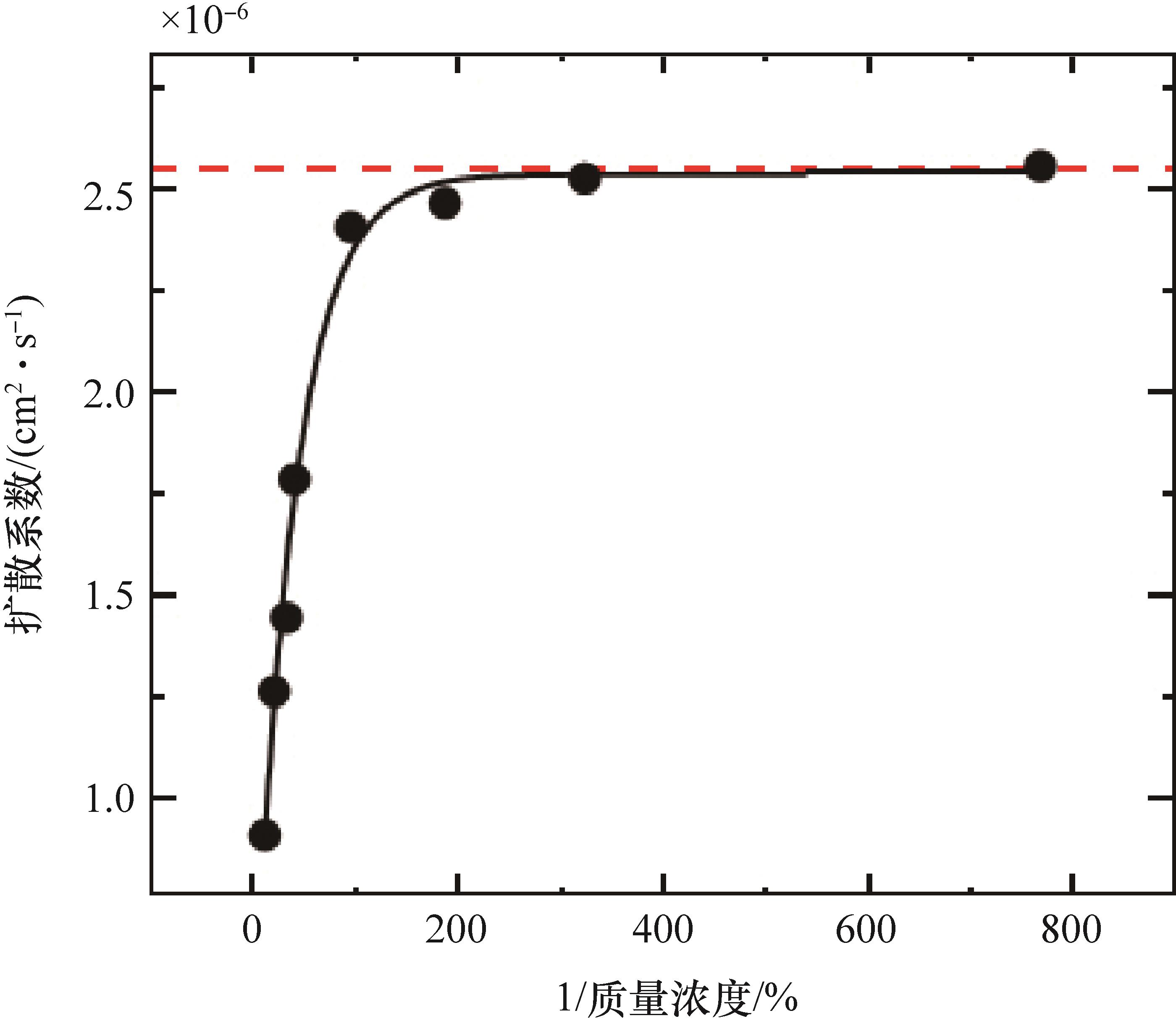

Fig.7 Fe cluster mass concentration dependent diffusion coefficient of Fe cluster at 823 K

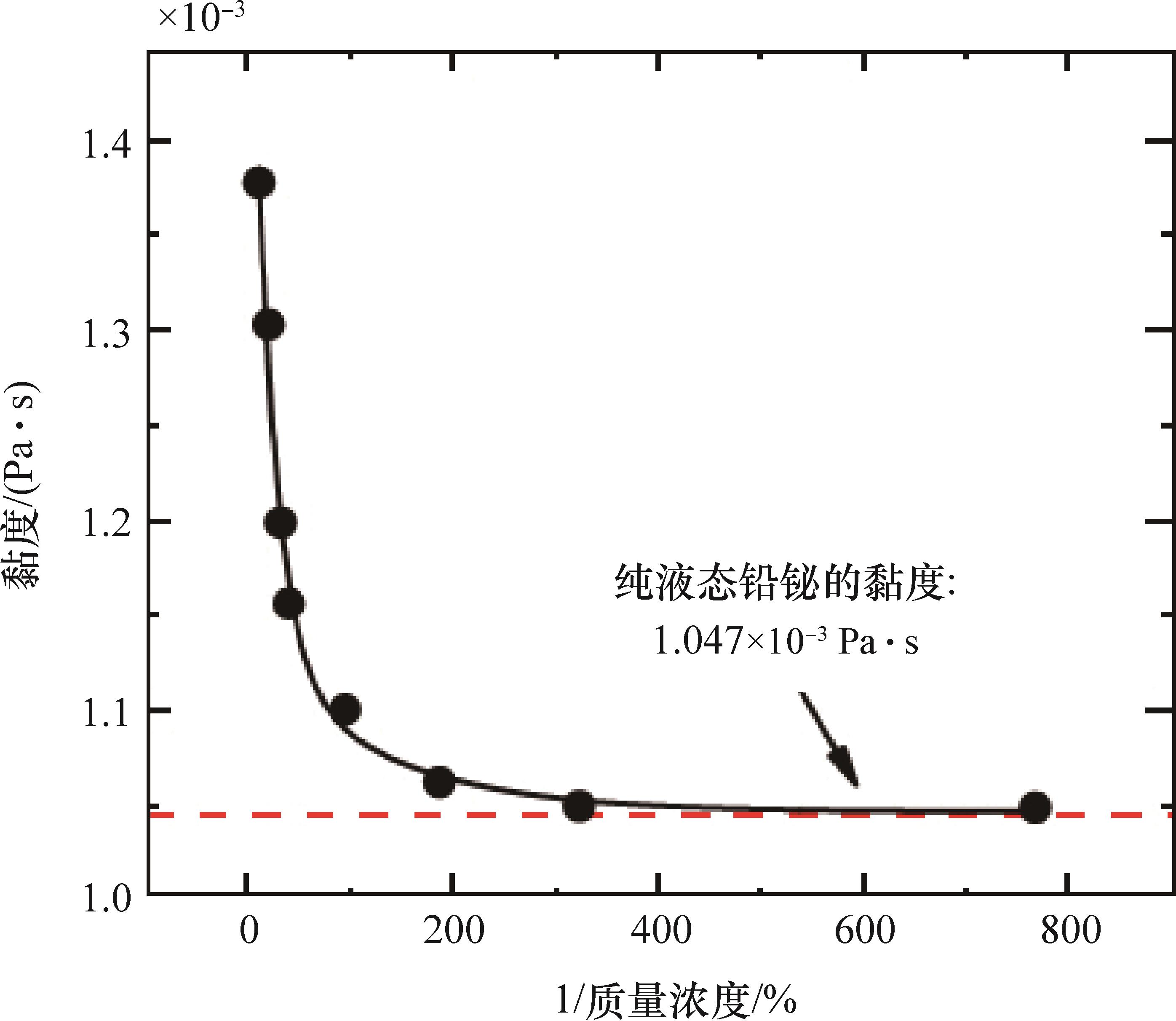

Fig.8 Fe cluster mass concentration dependent viscosity of liquid Pb-Bi at 823 K

Table 1 Number of atoms in the system

铁团簇半径/Å	铁原子数	铅铋原子数
10	339	42 391
12.5	701	42 223
15	1 243	41 989

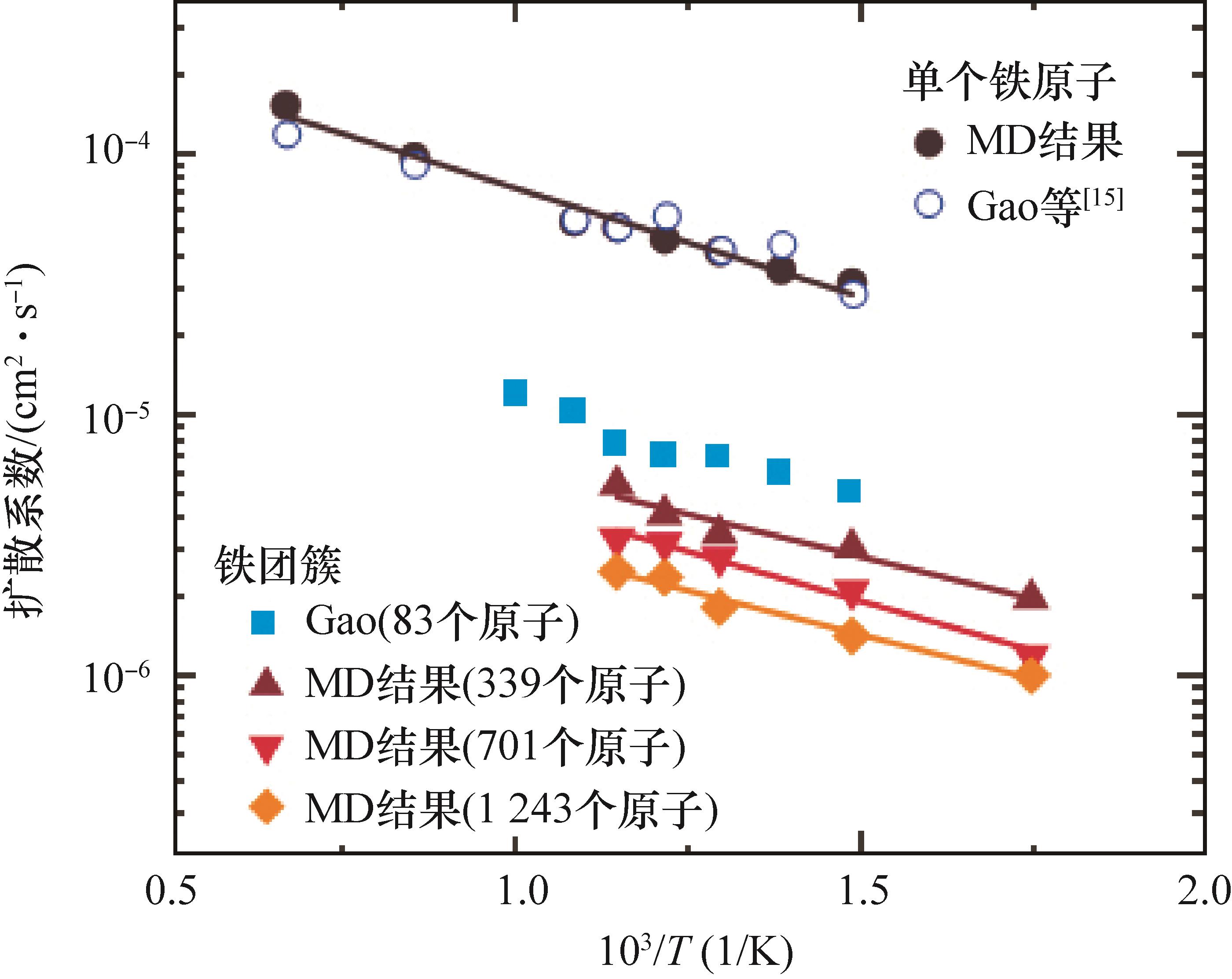

Fig.9 Temperature-dependent diffusion coefficient of Fe cluster at different sizes and single Fe atom

References 32
